Description
HIGHLIGHTS:

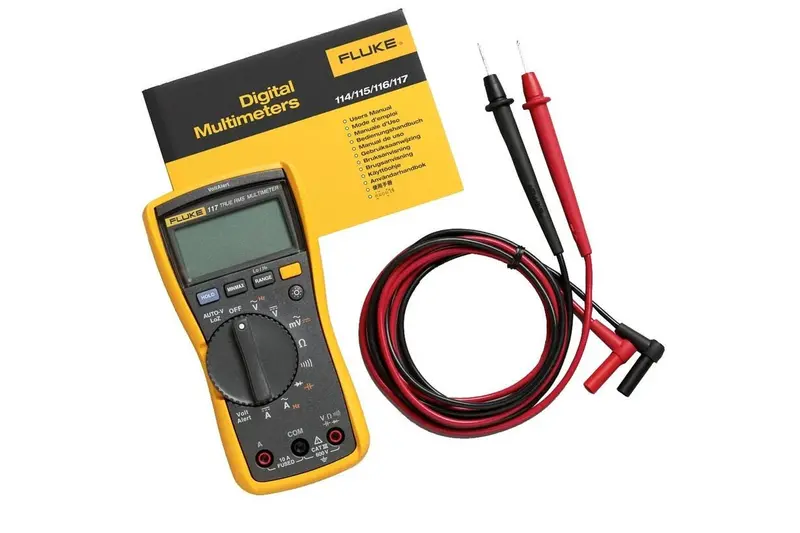

The Fluke 117 is the ultimate investment for professional electricians working in commercial buildings, hospitals, or schools. This True-RMS multimeter is engineered to streamline troubleshooting by integrating VoltAlert™ non-contact voltage detection directly into the tool, allowing you to work faster without constantly switching devices.
Built for accuracy in real-world conditions, the Fluke 117 features AutoVolt for automatic AC/DC voltage selection and LoZ (Low Impedance) functionality. The LoZ mode is critical for professionals as it eliminates “ghost voltages” that can lead to false readings in crowded electrical panels. With its ergonomic one-handed design and high-visibility backlit display, it is the industry standard for efficiency and safety.
FEATURES:
- Integrated VoltAlert™ Technology – Provides instant, non-contact detection of AC voltage without requiring a separate tester.
- AutoVolt Automatic Selection – Automatically switches between AC and DC voltage based on the detected input.
- LoZ (Low Input Impedance) – Effectively masks ghost voltages to ensure your readings are 100% accurate in stray-voltage environments.
- True-RMS Measurements – Essential for accurate readings on non-linear loads (like VFDs and modern electronics).
- Large White LED Backlight – Optimized for visibility in dark electrical closets and poorly lit workspaces.
- Comprehensive Measurement Suite – Offers precise testing for Resistance, Continuity, Frequency, Capacitance, and Diode health.
- High Current Capacity – Handles 10 A continuous (20 A overload for 30 seconds) for versatile circuit testing.
- Professional Durability & Safety – CAT III 600 V safety rated; includes 33-segment bar graph for high-speed signal tracking.
table { border: none; border-collapse: collapse; width: 100%;}td { border: none; text-align: left; padding: 5px; color: black; font-size: 13px;}td:first-child { font-weight: bold; width: 40%;}tr:nth-child(odd) { background-color: #E6EEF0;}
| Brand / Model | Fluke 117 (Electrician’s Multimeter) |
| Safety Rating | CAT III 600 V (IEC 61010-1 Pollution Degree 2) |
| Display / Bar Graph | 6,000 Counts (4/sec update) / 33 segments (32/sec) |
| DC Volts / Millivolts | Up to 600.0 V / 600.0 mV (Accuracy: 0.5% + 2) |
| AC Volts (True-RMS) | Up to 600.0 V (Accuracy: 1.0% + 3) |
| AC/DC Amps | 10.00 A (20 A max overload for 30 seconds) |
| Resistance (Ohms) | Up to 40.00 MΩ (Accuracy: 0.9% + 1) |
| Capacitance | Up to 9,999 μF (Accuracy: 1.9% + 2) |
| Frequency (Hz) | 5 Hz to 50 kHz (Accuracy: 0.1% + 2) |
| Lo-Z Capacitance | 1 nF to 500 μF (10% + 2 typical) |
| Diode Test | 2.00 V / 0.001 V resolution |
| Battery Life | 400 Hours typical (9V Alkaline IEC 6LR61) |
| Protection Fuse | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Dimensions / Weight | 167 x 84 x 46 mm / 550 g |
